High Efficiency 5th Axis Worm Gear Rotary Table Double Lead Hardened Steel High Speed

  • 1
  • 2

Minimum Indexing Unit : 0.001°

Payment Terms : T/T

Model Number : 5th SKT Series

MOQ : 1set

Application : CNC Machining, Milling

Transmission : High-efficiency & High-tooth-depth Double-lead Worm Gear Set

Brand Name : JuZhuo

Table Height : 290 ~ 760 Mm

Tilting Axis Height to Base : 198 ~ 554 Mm

Drive Type : Servo Motor Drive

Delivery Time : According To Customer Needs

Place Of Origin : Dongguan,China

Price : Negotiable

Certification : ISO9001,CE

Locating Key Width : 18 / 22 Mm

Packaging Details : Wooden Box

Center Bore Diameter (H7 tolerance) : Ø35 ~ Ø230 Mm

Supply Ability : 1000set/month

Contact Now

Product Overview
The 5th Worm Gear Rotary Table represents engineering excellence, delivering unmatched precision and durability for industrial and machining applications. This high-precision table features an efficient double-lead worm gear set that ensures smooth motion transmission with minimal backlash and exceptional load capacity.
Constructed from premium hardened steel, it offers superior strength and longevity, making it ideal for CNC applications where precision and durability are paramount. The rotary table seamlessly integrates with automated machining centers, providing precise angular positioning for complex milling, drilling, and grinding operations.
Key Features
  • Rotary Table with Worm Gear designed for precision and durability
  • 5th Axis Worm Gear Table for advanced multi-axis operations
  • Tilting Worm Gear Ratio: 1:80 to 1:150 for smooth tilting motion
  • Rotary Worm Gear Ratio: 1:80 to 1:120 for accurate rotation control
  • Maximum Rotary Speed: 5.5 to 33 R/min
  • Table Diameter options: Ø170 mm to Ø1000 mm
  • Ideal solution for enhanced machining precision and versatility
Technical Specifications
Type Worm Gear Rotary Table
T-slot Width 12 ~ 22 mm
Axis Of Rotation 5th Axis
Locating Key Width 18 / 22 mm
Drive Type Servo Motor Drive
Tilting Worm Gear Ratio 1:80 ~ 1:150
Matched Servo Power ≥1.0 ~ ≥3.8 kW
Center Bore Diameter (H7 tolerance) Ø35 ~ Ø230 mm
Max Rotary Speed 5.5 ~ 33 R/min
Drive Mechanism Worm Gear
Product Image

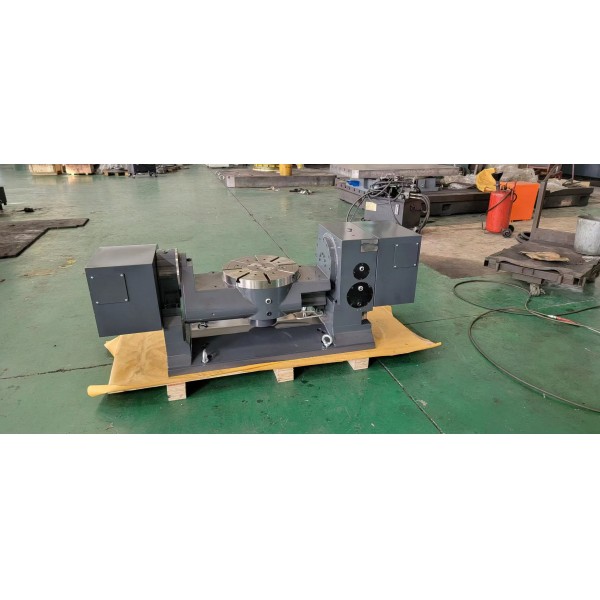

High Efficiency 5th Axis Worm Gear Rotary Table Double Lead Hardened Steel High Speed
Applications
The JuZhuo 5th SKT Series 5th Axis Worm Gear Table meets demanding requirements for precision machining and complex multi-axis operations. Certified with ISO9001 and CE standards, this high-precision table ensures exceptional accuracy and reliability.
Primary applications include CNC machining centers for complex 5-axis machining of aerospace parts, automotive components, and medical devices. The tilting angle range from -20° to 120° provides versatile positioning to access hard-to-reach areas.
In industrial manufacturing, it's used for indexing, milling, drilling, grinding, and assembly processes requiring high positioning accuracy. Suitable for aerospace, automotive, electronics, and mold making industries.
Customization & Ordering
The JuZhuo 5th SKT Series Worm Gear Rotary Table features 360° rotation with 0.001° minimum indexing unit for exceptional accuracy. Servo motor drive provides 3 to 30 N*m torque with total transmission ratio of 1:90 to 1:180.
Minimum order quantity: 1 set. Price is negotiable. Packaged in wooden boxes for safe delivery. Delivery time scheduled according to customer needs. Supply ability: 1000 sets per month. Payment terms: T/T accepted.
Support & Services
Comprehensive technical support available for installation, troubleshooting, and repair. Regular lubrication and inspection recommended for optimal performance. Technical documentation including CAD files and specification sheets provided.
Online resources include FAQs, troubleshooting guides, and video tutorials. Engineering team available for complex technical support and customized solutions.
Packing & Shipping
Securely packaged in custom-fitted foam within double-walled cardboard boxes. Metal surfaces coated with protective oil film. Includes mounting hardware and user manual.
Shipped worldwide via reliable carriers with tracking services. Expedited and standard shipping options available.
Frequently Asked Questions
What is the brand and model of the 5th Worm Gear Rotary Table?
Brand: JuZhuo, Model: 5th SKT Series
Where is the 5th Worm Gear Rotary Table manufactured?
Dongguan, China
What certifications does the product have?
ISO9001 and CE certified
What is the minimum order quantity and pricing?
Minimum order: 1 set, Price: Negotiable
How is the product packaged and delivered?
Packaged in wooden boxes. Delivery time according to customer needs. Payment: T/T
