Horizontal Load Capacity 250kg to 35000kg 4th Worm Gear Rotary Table
Product Overview
The Fourth Axis Rotary Worm Gear Table is an advanced precision solution for CNC machining and automation applications. Engineered with high-grade steel, this durable rotary table offers exceptional performance in demanding industrial conditions with impressive clamp torque ranging from 300 to 2000 N*m.
Featuring horizontal load capacity from 250 kg to 35,000 kg and rotation speeds between 1.0 and 11.1 revolutions per minute, this table accommodates various workpiece sizes and machining requirements. Powered by robust servo motors from ≥1.0 kW to ≥11.3 kW, it ensures smooth, accurate rotational control for enhanced manufacturing precision.
Key Features
- High precision CNC Fourth Axis Worm Gear Table for accurate positioning
- Servo Motor Torque range from 12 to 50 N*m for powerful operation
- Robust Vertical Load Capacity between 150kg and 5000kg
- Efficient Servo Motor Drive mode for reliable control
- Wide Worm Gear Ratio options from 1:90 to 1:220
- Center Bore Diameter from Ø30H7 to Ø280H7
- Durable construction for long-lasting performance
Technical Specifications
| Drive Mode |
Servo Motor Drive |
| Application |
Precision Machining And Milling |
| Center Bore Diameter |
Ø30H7 ~ Ø280H7 |
| Drive Mechanism |
Worm Gear |
| Max Workpiece Moment of Inertia |
259 ~ 159000 Kg*cm*s |
| Total Thickness |
190mm ~ 1150mm |
| Indexing Accuracy |
15″ ~ 25″ (Individual Heavy Model: 20″/25′) |
| Total Reduction Ratio |
1:180 ~ 1:2160 |
| Servo Motor Power |
≥1.0kW ~ ≥11.3kW (Max ≥3.8kW For Partial Heavy Models) |
| Max Rotation Speed |
1.0 ~ 11.1 R/min |

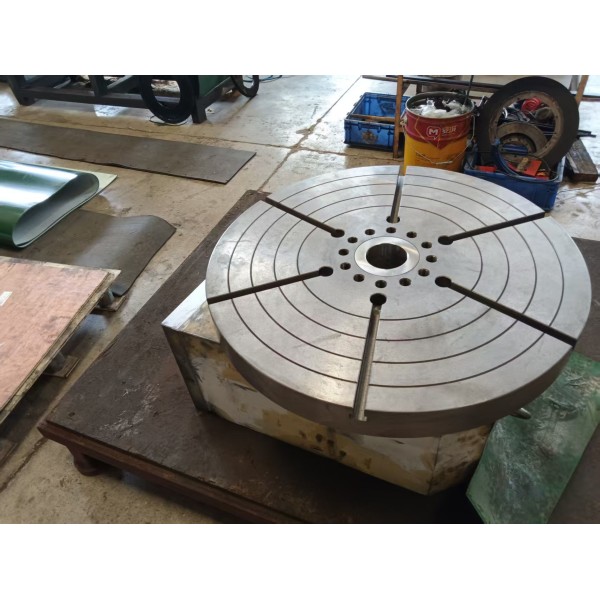

Product Image
Applications
The JuZhuo 4th SKT Series Worm Gear Rotary Table is ideal for metalworking, aerospace, automotive, and robotics industries. Perfect for complex machining, drilling, grinding, and assembly processes requiring multi-axis control and precise angular positioning with minimum indexing unit of 0.001°.
Customization & Ordering
Brand: JuZhuo | Model: 4th SKT Series | Origin: Dongguan, China
Certifications: ISO9001, CE | Minimum Order: 1 set | Packaging: Wooden Box
Delivery: According to Customer Needs | Payment: T/T | Supply: 1000 sets/month
Support & Services
Comprehensive technical support, calibration, refurbishment, and custom modification services available. Regular maintenance including lubrication and gear inspection recommended for optimal performance. Professional assistance provided for advanced troubleshooting.
Packing & Shipping
Each rotary table is securely wrapped with protective materials and placed in sturdy custom-designed boxes with additional padding. Shipping includes tracking and insurance with prompt dispatch and timely updates.
Frequently Asked Questions
What brand manufactures the 4th Worm Gear Rotary Table?
The 4th Worm Gear Rotary Table is manufactured by JuZhuo.
What certifications does the 4th SKT Series Rotary Table have?
The 4th SKT Series Rotary Table is certified with ISO9001 and CE.
What is the minimum order quantity for this product?
The minimum order quantity for the 4th Worm Gear Rotary Table is 1 set.
How is the product packaged for shipping?
The product is securely packaged in a wooden box to ensure safe delivery.
What are the payment terms and delivery time for orders?
Payment is accepted via T/T, and delivery time is according to customer needs.
