Precision Machining Servo Driven Rotary Table Torque 12 to 50 Nm 4th Axis Worm Gear Table

Product Categories
Dongguan Juzhuo Precision Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

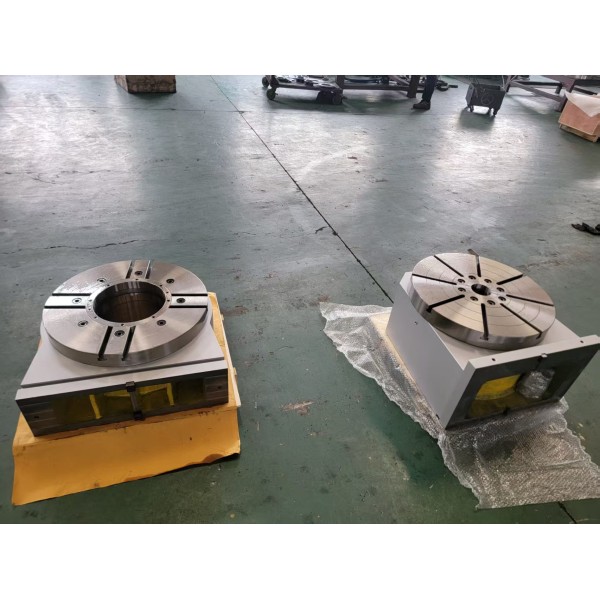

Precision Machining Servo Driven Rotary Table Torque 12 to 50 Nm 4th Axis Worm Gear Table

  • 1
  • 2

Price : Negotiable

Application : Precision Machining And Milling

Packaging Details : Wooden Box

Total Reduction Ratio : 1:180 ~ 1:2160

Servo Motor Torque : 12 ~ 50 N·m

Certification : ISO9001,CE

Payment Terms : T/T

Minimum Indexing Unit : 0.001°

MOQ : 1set

Worktable Diameter : 250mm ~ 3000mm

Servo Motor Power : ≥1.0kW ~ ≥11.3kW (Max ≥3.8kW For Partial Heavy Models)

Model Number : 4th SKT Series

Supply Ability : 1000set/month

Brand Name : JuZhuo

Transmission Structure : Double-lead Worm Gear Set

Place Of Origin : Dongguan,China

Delivery Time : According To Customer Needs

Indexing Accuracy : 15″ ~ 25″ (Individual Heavy Model: 20″/25′)

Name : Servo Driven Rotary Table

Contact Now

Servo Motor Torque 12 to 50 Nm 4th Worm Gear Rotary Table
Product Overview

The 4th Axis Worm Gear Rotary Table is an essential component designed to enhance precision and efficiency in various machining operations. This high-quality Fourth Axis Worm Gear Table is engineered with meticulous attention to detail, providing exceptional performance for CNC machining centers, milling machines, and other industrial applications.

Constructed from high-grade steel, the material ensures durability, strength, and long-lasting reliability under rigorous working conditions. The substantial worktable diameter range from 250mm to 3000mm caters to a wide array of project requirements, making it suitable for both small-scale precision tasks and large industrial parts.

Key Features
  • 4th Axis Worm Gear Rotary Table designed for precise rotational positioning
  • Rotary Table with Worm Gear Drive offering total reduction ratios from 1:180 to 1:2160
  • Available worktable diameters from 250mm up to 3000mm
  • Robust net weight ranging between 110kg and 22500kg ensuring stability
  • High horizontal load capacity from 250kg to 35000kg for heavy-duty applications
  • Versatile T-slot width options between 6-12mm and 12-28mm
  • Worm Gear Indexed Rotary Table providing accurate and repeatable indexing
Technical Specifications
Parameter Specification
Max Rotation Speed 1.0 ~ 11.1 R/min
Vertical Load Capacity 150kg ~ 5000kg
Drive Mode Servo Motor Drive
Max Workpiece Moment of Inertia 259 ~ 159000 Kg*cm*s
Max Driving Torque 300 ~ 30000 N*m
T-slot Width 6-12mm ~ 12-28mm
Total Reduction Ratio 1:180 ~ 1:2160
Application Precision Machining And Milling
Minimum Indexing Unit 0.001°
Clamp Torque (Hydraulic 15×10⁵ Pa) 300 ~ 2000 N*m
Precision Machining Servo Driven Rotary Table Torque 12 to 50 Nm 4th Axis Worm Gear Table
Applications

The JuZhuo 4th SKT Series Worm Gear Rotary Table is ideal for CNC machining centers where it functions as a Fourth Axis Worm Gear Table, enabling complex multi-axis machining for milling, drilling, and cutting processes. Its high indexing accuracy (15″ to 25″) makes it suitable for aerospace, automotive, and electronics manufacturing industries.

The rotary table is also widely used in automation systems and assembly lines for welding, inspection, and assembly operations requiring precise rotational indexing.

Product Specifications
Brand Name
JuZhuo
Model Number
4th SKT Series
Place of Origin
Dongguan, China
Certification
ISO9001, CE
Minimum Order Quantity
1 set
Price
Negotiable
Packaging Details
Wooden Box
Delivery Time
According To Customer Needs
Payment Terms
T/T
Supply Ability
1000 set/month
Support & Services

We provide comprehensive technical support including detailed product documentation, troubleshooting guides, and maintenance tips. Our experienced technicians offer repair services, replacement parts, and training sessions to ensure optimal performance and longevity of your equipment.

Packing & Shipping

Each unit is securely wrapped with protective materials and placed in sturdy wooden boxes to prevent damage during transit. We offer reliable worldwide shipping with tracking available. International shipments comply with all customs regulations to ensure timely delivery.

Frequently Asked Questions
What is the brand and model number of the 4th Worm Gear Rotary Table?
The 4th Worm Gear Rotary Table is branded as JuZhuo, and the model number is 4th SKT Series.
Where is the 4th Worm Gear Rotary Table manufactured?
This product is manufactured in Dongguan, China.
What certifications does the 4th Worm Gear Rotary Table have?
The 4th Worm Gear Rotary Table is certified with ISO9001 and CE.
What is the minimum order quantity and pricing for this product?
The minimum order quantity is 1 set, and the price is negotiable based on order details.
How is the 4th Worm Gear Rotary Table packaged and what are the delivery and payment terms?
The product is packaged in a wooden box. Delivery time is according to customer needs, and payment terms are T/T.
