Fourth Axis Direct Drive Rotary Table Manufacturer , High Speed Machining Rotary Table

Name: Fourth Axis Direct Drive Rotary Table Manufacturer High Speed Machining Rotary Table
Brand: JuZhuo
Price: 1 USD

Buy cheap Fourth Axis Direct Drive Rotary Table Manufacturer , High Speed Machining Rotary Table product

Rated Motor Torque : 65 N·m

Center Height : 135 Mm

IP Protection Class : IP65

Price : Negotiable

Max Rotating Speed : 200 R/min

Table Diameter : 170 Mm

Cable Outlet Type : Aviation Plug Connector

Payment Terms : T/T

Supply Ability : 1000set/month

Shaft Mounting Form : Horizontal

Place Of Origin : Dongguan,China

Packaging Details : Wooden Box

MOQ : 1set

Delivery Time : According To Customer Needs

Application : Ideal For High-speed Machining Of Turbine Blades, Medical Equipment Parts, 3C Electronic Components And Other Workpieces.

Model Number : DAR-170-02

Name : Direct Drive Rotary Table

Brand Name : JuZhuo

Certification : ISO9001,CE

Contact Now

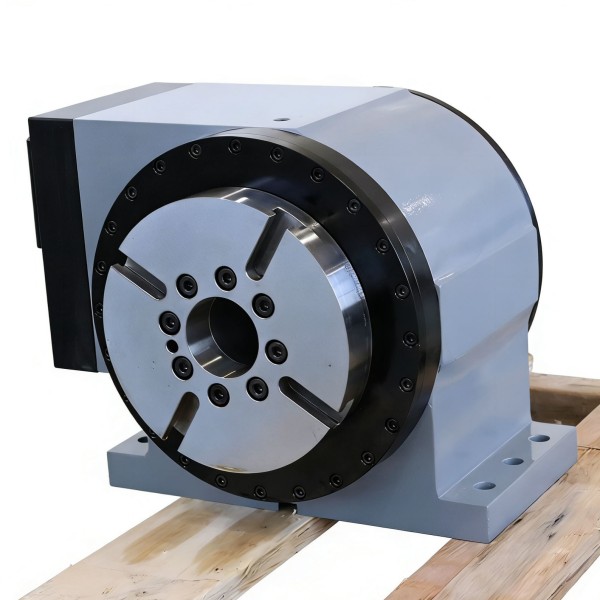

Center Height 135 Mm 4th Axis Direct-Driver Rotary Table

Product Overview

The 4th Axis Direct-Driver Rotary Table is an advanced precision solution designed for applications requiring exceptional rotational accuracy and torque. As a Direct-Drive 4th Axis Table, it eliminates mechanical transmission elements like gears and belts, resulting in reduced backlash and enhanced positioning precision. Ideal for CNC machining, robotics, and automated manufacturing where precision and reliability are paramount.

Key Features

Direct-drive motor with rapid acceleration, high torque, precise control, and zero backlash
Robust pneumatic clamping brake system for secure and reliable fastening
Large-bore, high-rigidity bearings for enhanced stability and durability
Perfect for high-speed machining of turbine blades, medical equipment, 3C electronic parts, and more

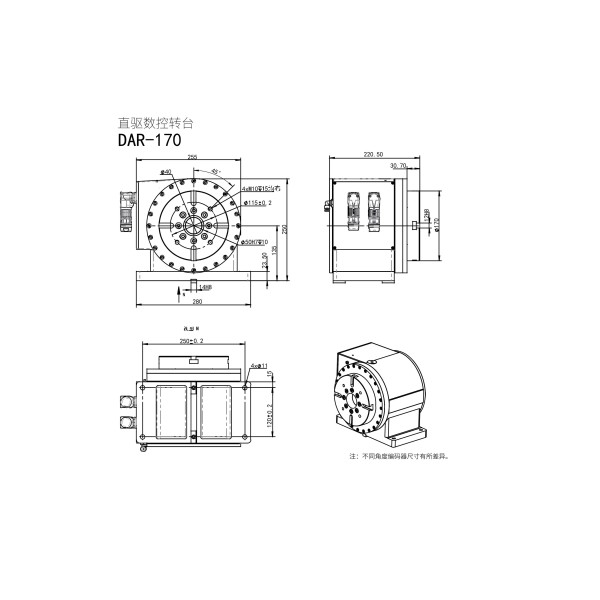

Technical Specifications

Product Name	Fourth Axis CNC Rotary Table / Direct-Drive 4th Axis Table
Overall Weight	48 Kg
IP Protection Class	IP65
Max Table Load Capacity	50 Kg
Table Diameter	170 Mm
Center Height	135 Mm
Shaft Mounting Form	Horizontal
Peak Motor Torque	309 N*m
Clamping Brake Torque	150 N*m
T-slot Specification	12H8
Hollow Bore Diameter	40 Mm

Fourth Axis Direct Drive Rotary Table Manufacturer , High Speed Machining Rotary Table

Applications

The JuZhuo DAR-170-02 4th Axis Direct-Driver Rotary Table excels in aerospace, automotive, mold making, and metalworking industries. With peak motor torque of 309 N*m and maximum rotating speed of 200 R/min, it provides the power and agility necessary for complex machining tasks including multi-axis milling, drilling, and engraving.

Customization Options

JuZhuo offers flexible customization services for the DAR-170-02 with minimum order quantity of 1 set and negotiable pricing. Features include aviation plug connector cable outlet, natural cooling motor mode, and sturdy wooden box packaging with delivery times arranged according to customer needs.

Support & Services

Our technical support team provides comprehensive assistance with installation, calibration, troubleshooting, and CNC integration. Services include preventive maintenance, repair, firmware updates, custom configuration, and on-site service to ensure optimal performance and minimal downtime.

Packaging & Shipping

Each unit is securely packaged in custom foam-molded boxes within reinforced outer cartons. We provide worldwide shipping with reliable carriers, thorough pre-dispatch inspection, and tracking information. Our packaging ensures maximum protection during transit.

Frequently Asked Questions

What is the brand and model number of this 4th Axis Direct-Driver Rotary Table?

The brand is JuZhuo and the model number is DAR-170-02.

Where is the JuZhuo DAR-170-02 rotary table manufactured?

It is made in Dongguan, China.

What certifications does the JuZhuo DAR-170-02 rotary table have?

This product is certified with ISO9001 and CE.

What is the minimum order quantity and price for the JuZhuo DAR-170-02?

The minimum order quantity is 1 set and the price is negotiable.

How is the JuZhuo DAR-170-02 rotary table packaged and what are the delivery terms?

It is packaged in a wooden box. Delivery time is according to customer needs, and payment terms are T/T.
