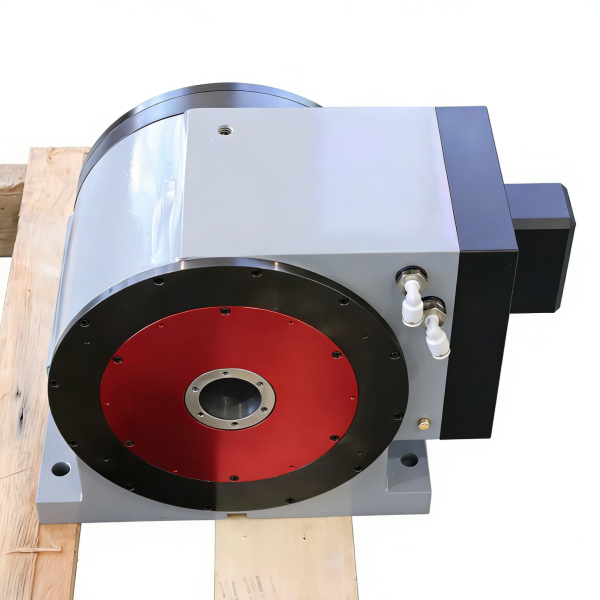

High Speed Direct Drive Zero Backlash Rotary Table 4th Axis 309 N·M Peak Motor Torque

  • 1
  • 2

Overall Weight : 48 Kg

Packaging Details : Wooden Box

Cable Outlet Type : Aviation Plug Connector

Payment Terms : T/T

Motor Cooling Mode : Natural Cooling

Brand Name : JuZhuo

Supply Ability : 1000set/month

T-slot Specification : 12H8

Center Height : 135 Mm

Name : Direct Drive Rotary Table

Certification : ISO9001,CE

Price : Negotiable

Model Number : DAR-170-02

Application : Ideal For High-speed Machining Of Turbine Blades, Medical Equipment Parts, 3C Electronic Components And Other Workpieces.

Place Of Origin : Dongguan,China

MOQ : 1set

Rated Motor Torque : 65 N·m

Clamping Brake Torque : 150 N·m

Delivery Time : According To Customer Needs

Contact Now

309 N·m Peak Motor Torque 4th Axis Direct-Driver Rotary Table
Product Overview
The 4th Axis Direct-Driver Rotary Table is a state-of-the-art solution designed to enhance CNC machining centers, particularly for applications requiring exceptional precision and high-speed operations. This advanced direct-drive rotary table meets demanding requirements in aerospace, medical equipment manufacturing, and electronics industries where accuracy and reliability are paramount.
Key Features
  • Direct-drive motor providing rapid acceleration, high torque, precise control, and zero backlash
  • Robust pneumatic clamping brake mechanism for reliable holding force and enhanced safety
  • Large-bore, high-rigidity bearings for durability and precision under heavy loads
  • Ideal for high-speed machining of turbine blades, medical components, and 3C electronic parts
Technical Specifications
Motor Cooling Mode Natural Cooling
T-slot Specification 12H8
Center Height 135 mm
Max Table Load Capacity 50 kg
Overall Weight 48 kg
Clamping Brake Torque 150 N·m
Peak Motor Torque 309 N·m
Table Diameter 170 mm
Hollow Bore Diameter 40 mm
Rated Motor Torque 65 N·m
High Speed Direct Drive Zero Backlash Rotary Table 4th Axis 309 N·M Peak Motor Torque High Speed Direct Drive Zero Backlash Rotary Table 4th Axis 309 N·M Peak Motor Torque
Applications
  • High-speed machining of turbine blades
  • Medical equipment components manufacturing
  • 3C electronic parts production
  • Aerospace industry precision components
  • Multi-axis milling and turning operations
Customization & Ordering
The JuZhuo DAR-170-02 offers flexible customization options with a minimum order quantity of 1 set. Pricing is negotiable and delivery times are arranged according to customer requirements. The product is ISO9001 and CE certified, packaged securely in wooden boxes for safe delivery.
Support & Services
Comprehensive technical support includes installation guidance, troubleshooting, and optimization. We provide maintenance services, calibration, firmware updates, and operator training to ensure optimal performance and longevity of your rotary table.
Packaging & Shipping
Each unit is securely packaged in custom-fitted foam within sturdy cardboard boxes with moisture-resistant sealing. We offer multiple shipping options with tracking and insurance available. All accessories and manuals are included.
Frequently Asked Questions
What is the brand and model number?
Brand: JuZhuo, Model: DAR-170-02
Where is it manufactured?
Dongguan, China
What certifications does it have?
ISO9001 and CE certified
What is the minimum order quantity?
1 set with negotiable pricing
