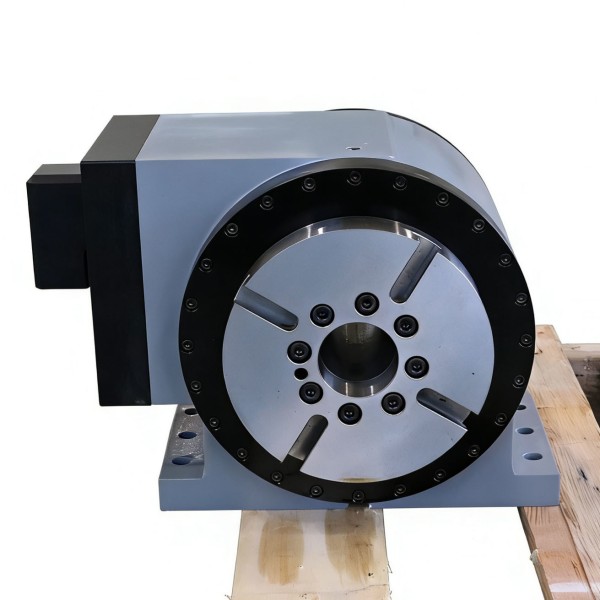

Natural Cooling Direct Drive 4th Axis Table Rated Motor Torque 65 Nm
Ideal for high precision CNC rotary positioning tasks in aerospace, automotive, electronics, and general manufacturing applications.
Product Overview
The 4th Axis Direct-Drive Rotary Table delivers superior performance, reliability, and accuracy for advanced machining and automation. Featuring horizontal shaft mounting for optimal alignment and stability, natural cooling for reduced maintenance, and robust construction for long-term durability.
Key Features
- Direct-drive motor provides high acceleration and torque with zero backlash
- Robust pneumatic clamping brake system for enhanced stability and safety
- Large-bore, high-rigidity bearings for smooth performance under heavy loads
- Ideal for high-speed machining of turbine blades, medical equipment, and 3C electronic components
Technical Specifications
| Application |
High-speed machining of turbine blades, medical equipment parts, 3C electronic components |
| IP Protection Class |
IP65 |
| Max Table Load Capacity |
50 Kg |
| Hollow Bore Diameter |
40 mm |
| Peak Motor Torque |
309 N·m |
| Rated Motor Torque |
65 N·m |
| T-slot Specification |
12H8 |
| Overall Weight |
48 Kg |
| Max Rotating Speed |
200 R/min |
| Cable Outlet Type |
Aviation Plug Connector |
Product Images
Applications
The JuZhuo DAR-170-02 4th Axis Direct-Drive Rotary Table enhances CNC machine capabilities for complex multi-dimensional machining in metalworking, aerospace, automotive, and electronics industries. Certified with ISO9001 and CE standards, it supports milling, drilling, grinding, and assembly operations with precision and efficiency.
Customization & Ordering
Manufactured in Dongguan, China with minimum order quantity of 1 set. Flexible pricing and delivery times. Packaged in wooden boxes for safe delivery. Payment terms: T/T accepted. Supply capacity: 1000 sets per month.
Support & Services
Comprehensive technical support, installation assistance, software integration, and maintenance services. Product manual included with detailed instructions. Genuine parts replacement and upgrade options available.
Packaging & Shipping
Securely packaged in custom-fitted foam within double-walled cardboard boxes with additional protective materials. Multiple shipping options including standard ground freight, expedited air shipping, and international courier services. All shipments tracked and insured.
Frequently Asked Questions
Q: What is the brand and model number?
A: JuZhuo DAR-170-02
Q: Where is it manufactured?
A: Dongguan, China
Q: What certifications does it have?
A: ISO9001 and CE certified
Q: What is the minimum order quantity and packaging?
A: Minimum 1 set, packaged in wooden boxes
Q: What are the payment terms and delivery time?
A: T/T payment, delivery time arranged according to customer needs
