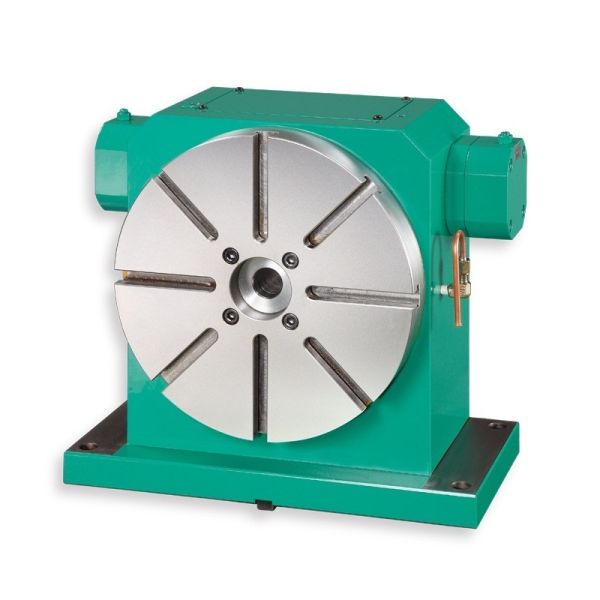

Hydraulic Indexing Rotary
Product Overview
The Hydraulic Indexing Rotary is a highly reliable and robust Hydraulic Rotary Positioning System designed to deliver precise and efficient rotary indexing for a wide range of industrial applications. This product incorporates a hydraulic drive type combined with hydraulic indexing method, ensuring smooth, accurate, and repeatable positioning performance.
Key Features
- Product Name: Hydraulic Indexing Rotary
- Parallelism (Table Top to Base): 0.02 ~ 0.03 mm
- Center Hole Diameter: Φ30 ~ Φ120 mm
- Working Hydraulic Pressure: 30 ~ 35 Kg/cm²
- Drive Type: Hydraulic
- 90° Indexing Time: 2.0 ~ 10.0 seconds
- Hydraulic Indexed Rotary Mechanism for precise positioning
- Hydraulic Rotary Positioning System for smooth operation
- Ideal for various industrial automation applications
Technical Specifications
| Parameter |
Specification |
| Product Name |
Hydraulic Indexing Rotary |
| Indexing Method |
Hydraulic Indexing |
| Working Hydraulic Pressure |
30 ~ 35 Kg/cm² |
| Table Top Runout |
0.01 ~ 0.02 mm |
| Parallelism (Table Top to Base) |
0.02 ~ 0.03 mm |
| Vertical Center Height |
155 ~ 310 mm (Vertical Models Only) |
| Clamping Force (F) |
1260 ~ 9600 Kgf |
| Application |
Machining, Assembly, Automation |
| T-Slot Width |
12H7 / 14H7 mm (Vertical Models Only) |
| Allowable Load Capacity |
95 ~ 2400 Kg |
Applications
The JuZhuo Hydraulic Indexing Rotary is designed for automated assembly lines, automotive manufacturing, electronics assembly, packaging, metalworking, welding automation, inspection stations, and rotary transfer machines where precise and repeatable positioning is critical.
Customization Options
Available in HCT Series and HCTV Series with precise repetitive accuracy of ±1 to ±2 arc seconds. Features include center hole depth ranging from 11 to 40 mm and T-slot widths of 12H7 or 14H7 mm for vertical models. Minimum order quantity is 1 set with negotiable pricing.
Frequently Asked Questions
What is the brand and model number of the Hydraulic Indexing Rotary?
Manufactured by JuZhuo with model numbers HCT Series and HCTV Series.
Where is the Hydraulic Indexing Rotary produced?
This product is made in Dongguan, China.
What certifications does the product have?
Certified with ISO9001 and CE standards.
What are the payment and delivery terms?
Payment terms are T/T (Telegraphic Transfer) with delivery time according to customer needs.
What is the supply capacity?
JuZhuo can supply up to 1000 sets per month.
