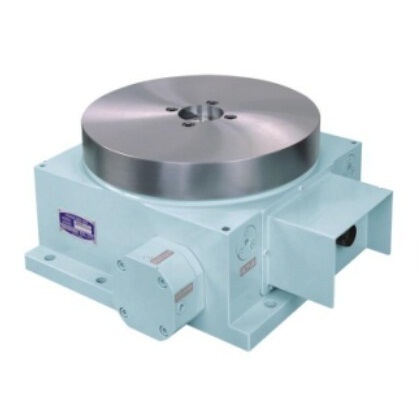

50 to 900 Kg Load Torque Hydraulic Indexing Rotary Actuator
Offering torque range 541 to 19110 N·m for precise rotary motion control applications.
Product Overview
The Hydraulic Indexing Rotary Unit is a highly precise and robust solution designed for applications requiring accurate and repeatable rotary positioning. Engineered to deliver exceptional performance, this unit is widely utilized in various industrial sectors including automation, machining, and assembly lines where precision and reliability are paramount.
Key Features
- High precision Hydraulic Indexing Rotary Actuator with perpendicularity & guide block tolerance of 0.02 mm (Vertical Models Only)
- Table top flatness ranging from 0.015 to 0.02 mm for accurate positioning
- Suitable for various applications including machining, assembly, and automation
- Operates under working hydraulic pressure of 30 to 35 Kg/cm²
- Equipped with reliable hydraulic seals to ensure leak-free performance
- Advanced Hydraulic Rotary Positioning System for smooth and controlled rotary motion
Technical Specifications
| Product Name |
Hydraulic Indexing Rotary |
| Drive Type |
Hydraulic |
| 90° Indexing Time |
2.0 ~ 10.0 S |
| Table Top Flatness |
0.015 ~ 0.02 Mm |
| Repetitive Accuracy |
±1 ~ ±2 Arc Sec |
| T-Slot Width |
12H7 / 14H7 Mm (Vertical Models Only) |
| Center Hole Depth |
11 ~ 40 Mm |
| Material |
High-strength Steel |
| Table Overall Height |
175 ~ 545 Mm |
| Center Through Hole Diameter |
Φ27 ~ Φ800 Mm |
Applications
The JuZhuo Hydraulic Indexing Rotary is designed for precision rotary indexing applications across various industries:
- Automated assembly lines for welding, machining, and inspection
- Automotive manufacturing and aerospace component assembly
- Heavy machinery production and CNC machine integration
- Precision indexing tasks requiring high load capacity and accuracy
Customization Options
JuZhuo offers customizable solutions with minimum order quantity of 1 set and negotiable pricing. Products are certified with ISO9001 and CE standards, featuring robust hydraulic drive type capable of handling allowable load capacities from 95 to 2400 kg.
Support & Services
Comprehensive technical support includes installation assistance, operation guidance, troubleshooting, and maintenance services. We provide detailed documentation and genuine replacement parts to ensure optimal performance throughout the equipment lifecycle.
Frequently Asked Questions
What brand manufactures the Hydraulic Indexing Rotary?
The Hydraulic Indexing Rotary is manufactured by JuZhuo, a reputable brand known for quality products.
What model numbers are available?
Available in HCT Series and HCTV Series models.
Where is the product produced?
Manufactured in Dongguan, China.
What certifications does the product hold?
ISO9001 and CE certifications ensuring international quality and safety standards.
