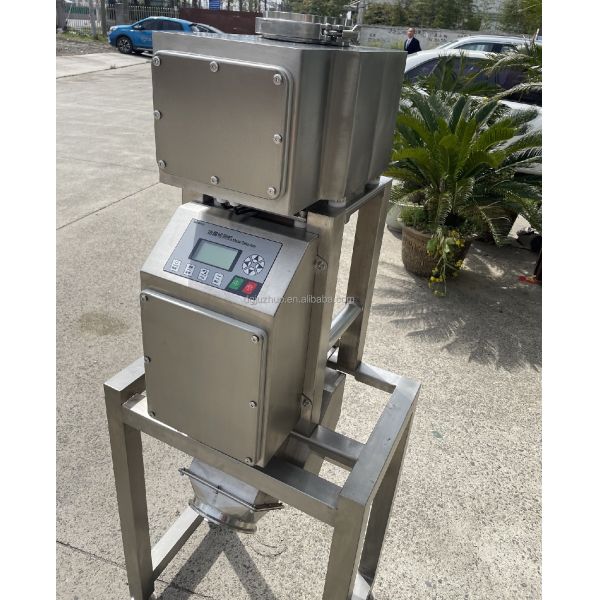

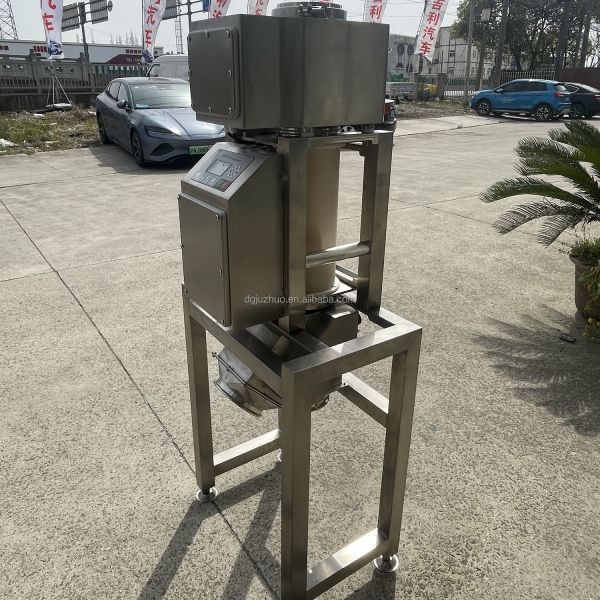

High Precision Throat Free Gravity Drop Metal Magnetic Detection Separator

Place of Origin : Guangdong, China

waterproof level : IP54

Communication Interface : other

Model Number : JZD-P16

type : New

operating frequency : Multi-Frequency

user : Adults, Kids

MOQ : 1

sensitivity : 0.7

Control panel : LCD display

Search Coil Diameter : 5cm

the way of exlusion : automatic separation

IP Rating : Ip67

raw material : SUS304

Price : €3,035.16

the diameter of transportation hopper : 30~250mm(customized)

Contact Now

High Precision Throat Metal Detector with Free Gravity Drop Metal Magnetic Separator

Product Overview

Pharmaceutical food pellet particle pill candy medicine biscuit inline metal detector for inclining free falling vertical output JZD-P16

Applications

Food industry
Chemical industry
Pharmaceutical industry
Plastic industry
Packaging industry

Function

To detect and separate all metals including copper, iron, zinc, stainless steel, and other metallic contaminants.

Key Features

Detection method: Free-Falling body/Gravity
Suitable material: grain or powder
Separate ways: automatic separation
Advantage: high precision and simple installation

Technical Parameters

Operating voltage	220 VAC (+/-10%, 50/60 Hz)
Input current	80/160 mA
Ambient temperature	-10/60 degrees
Case Material	Stainless Steel
Contact parts with material	PP plastic and PTFE
Compressed air	4-8 kg, connected with 6-8 mm hose
Gas consumption	0.6 liters each separate action
Level of protection	IP 54
Separation time	0.2 - 2.5 seconds (No level can be adjusted)
Detection accuracy	0-10 stepless adjustable (recommended transferred to scale 9)

Usage & Material Specifications

Usage: To detect plastic granules with falling body method

Material characteristics: dry, no long-fiber, non-conductive, particles less than 8 mm

Product Specifications

Type (Internal Detection Tube Dia)	Capacity (l/h)	Detection Accuracy
80 type	5000 l/h	0.7mm iron, stainless steel; 1.2mm copper
100 type	10000 l/h	0.8mm iron, stainless steel; 1.5mm copper
150 type	20000 l/h	1.2mm iron, stainless steel; 2.0mm copper
200 type	40000 l/h	1.5mm iron, stainless steel; 2.0mm copper
250 Type	65,000 l/h	2.0mm iron, stainless steel; 2.5mm copper
