Gravity Fall Pharmaceutical Metal Detector Industrial Separator System JZD-60-40

waterproof level : IP66

Place of Origin : Guangdong, China

Output : 300KG/HR

Air consumption : 0.4leter per rejection action

Model Number : JZD-60-40

fuse : 2pcs 315ma

Detection sensitivity (:Fe SUS) : Fe:0.5mm sus:1mm

Rejection time : 0.2-2.5Second

Input tube : 35mm

the way of exlusion : automatic separation

raw material : SUS304 stainless steel

air compression : 2.5KG.8mmm soft tube connect

MOQ : 1

Contact Now

FO Gravity Metal Separator for Medicine JZD-60-40
Product Overview

The Gravity Metal Separator JZD-60-40 is specifically designed for detecting and removing metal impurities from pharmaceutical products, ensuring product purity and safety.

Applications

Primarily used for detecting ferrous, non-ferrous, copper, aluminum, and other metal impurities in pharmaceutical drugs and related products.

Technical Specifications
Control System Parameters
  • Control System: MEIDELE
  • Electromagnetic Valve: Standard
  • Air Cylinder: SMC
  • Air Cylinder Filter: SMC
  • Machine Material: Full stainless steel construction
  • Working Voltage: 220V AC (±10%), 50/60Hz
  • Input Current: 80/160mA
  • Fuse: 2 pieces 315mA
  • Working Environment: -10°C to 60°C
  • Waterproof Standard: IP65
  • Input Connectors: Testing button, Hand separator, Reset
  • Output Connector: Metal detector interface
Machine Parameters
  • Air Compression: 2.5KG, 8mm soft tube connection
  • Air Consumption: 0.4 liters per rejection action
  • Rejection Time: 0.2-2.5 seconds
Detection Sensitivity
Input Tube Output Detection Sensitivity (Fe/SUS)
35MM 300KG/HR Fe: 0.5mm, SUS: 1mm
Working Principle

The metal separator consists of two main sections: metal detection and rejection, both controlled by a central control box. The metal detector generates a high-frequency magnetic field. When metals pass through the sensor, they influence the magnetic field, triggering a signal to the rejection device for immediate removal.

Important Considerations

While this machine provides optimal metal separation solutions, detection may be compromised in the following scenarios:

  • When detected drugs have particles significantly smaller than standard metal detection thresholds
  • When multiple metals are detected simultaneously and the rejection device cannot be properly deactivated
Product Images

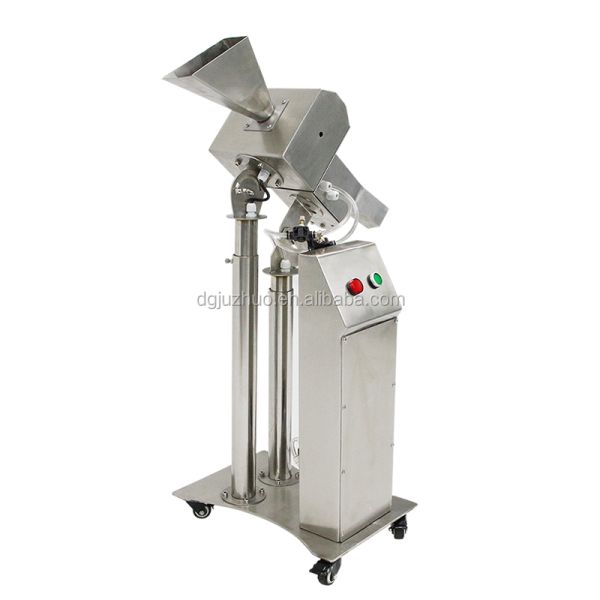

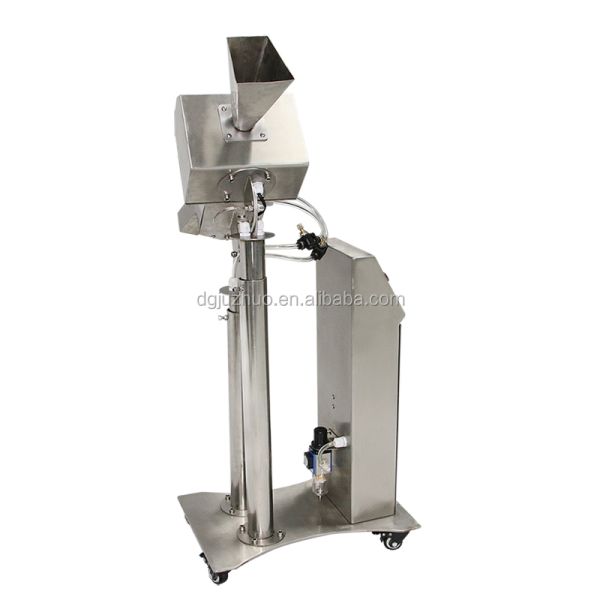

Gravity Fall Pharmaceutical Metal Detector Industrial Separator System JZD-60-40 Gravity Fall Pharmaceutical Metal Detector Industrial Separator System JZD-60-40 Gravity Fall Pharmaceutical Metal Detector Industrial Separator System JZD-60-40 Gravity Fall Pharmaceutical Metal Detector Industrial Separator System JZD-60-40 Gravity Fall Pharmaceutical Metal Detector Industrial Separator System JZD-60-40 Gravity Fall Pharmaceutical Metal Detector Industrial Separator System JZD-60-40
