Online Industrial Metal Detector High Sensitivity Gravity Fall Type System

Name: Online Industrial Metal Detector High Sensitivity Gravity Fall Type System
Brand: JUZHUO
Price: 1 USD

Buy cheap Online Industrial Metal Detector High Sensitivity Gravity Fall Type System product

waterproof level : IP54

raw material : SUS304

MOQ : 1

record quantities : 100kinds of different products

Place of Origin : Guangdong, China

the diameter of transportation hopper : 30~250mm(customized)

type : New

the way of exlusion : automatic separation

customized support : OEM, ODM, OBM

Certification : CE,ISO9001

Control panel : LCD display

warranty : 1year

Brand Name : JUZHUO

Model Number : JZD-P16

Contact Now

Online High Sensitivity Gravity-fall Type Metal Detector

Product Overview

High Sensitivity Gravity-fall Type Metal Detector JZD-P16 - Advanced metal detection solution for various industrial applications.

Applications

Food industry
Chemical industry
Pharmaceutical industry
Plastic industry
Packaging industry

Detection Capabilities

Detects and separates all types of metals including:

Copper
Iron
Zinc
Stainless steel
All other metals

Key Features

Detection method: Free-Falling body/Gravity
Suitable material: grain or powder
Separate ways: automatic separation
Advantage: high precision and simple installation

Technical Parameters

Operating voltage: 220 VAC (+/-10%, 50/60 Hz)
Input current: 80/160 mA
Ambient temperature: -10/60 degrees
Case Material: Stainless Steel
Contact parts with material: PP plastic and PTFE
Compressed air: 4-8 kg, connected with 6-8 mm hose
Gas consumption: 0.6 liters each separate action
Level of protection: IP 54
Separation time: 0.2 - 2.5 seconds (No level can be adjusted)
Detection accuracy: 0-10 stepless adjustable (recommended transferred to scale 9)

Usage & Material Requirements

Detection method: Plastic granules with falling body
Material characteristics: Dry, no long-fiber, non-conductive
Particle size: Less than 8 mm

Specifications

Model Type	Internal Detection Tube Diameter	Capacity (l/h)	Detection Accuracy
80 Type	80 mm	5000	0.7 mm iron, stainless steel; 1.2 mm copper
100 Type	100 mm	10000	0.8 mm iron, stainless steel; 1.5 mm copper
150 Type	150 mm	20000	1.2 mm iron, stainless steel; 2.0 mm copper
200 Type	200 mm	40000	1.5 mm iron, stainless steel; 2.0 mm copper
250 Type	250 mm	65000	2.0 mm iron, stainless steel; 2.5 mm copper

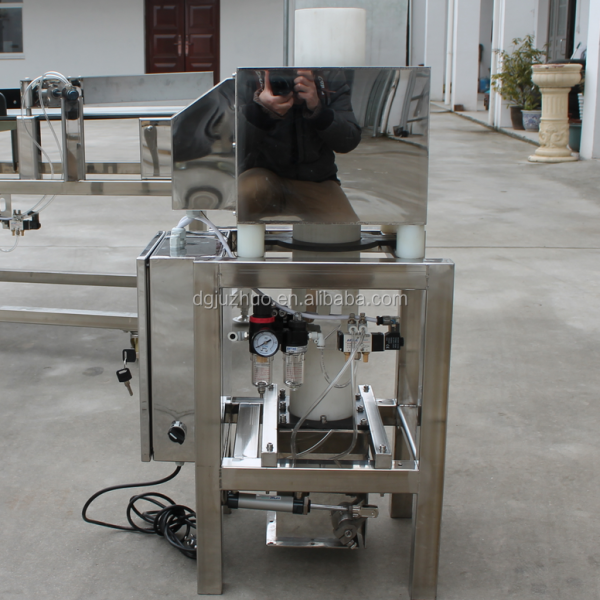

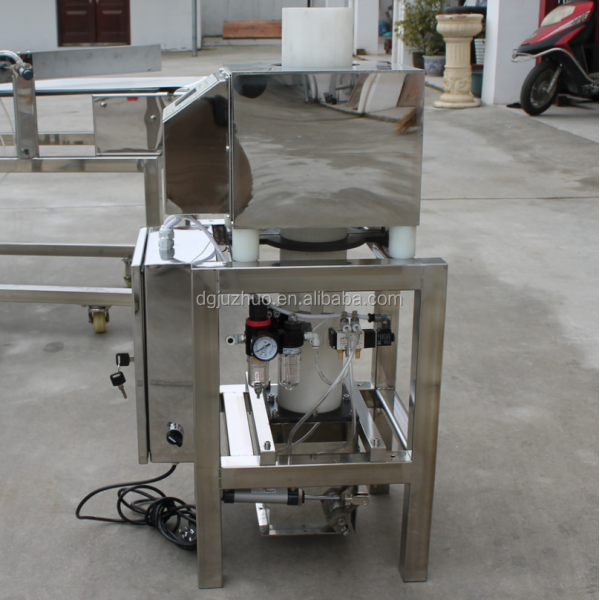

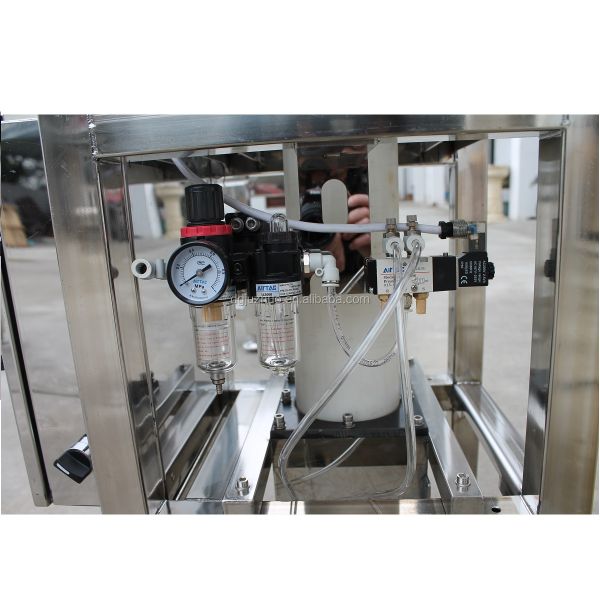

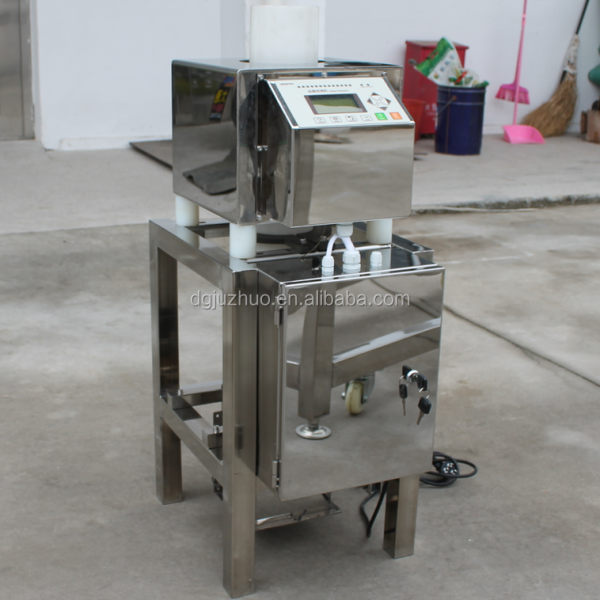

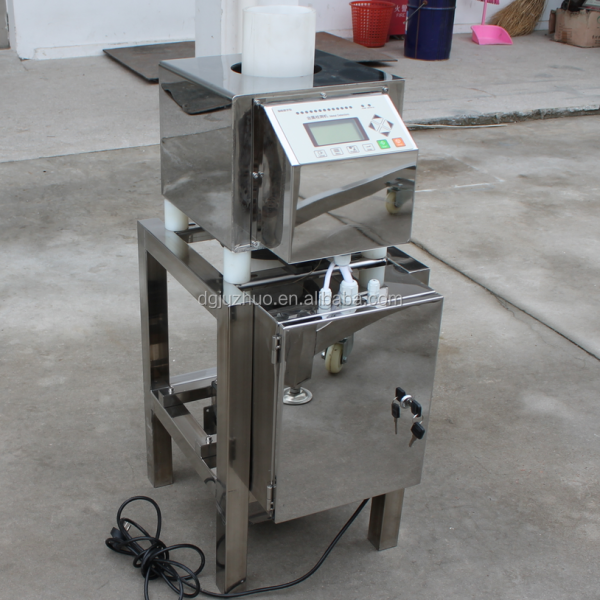

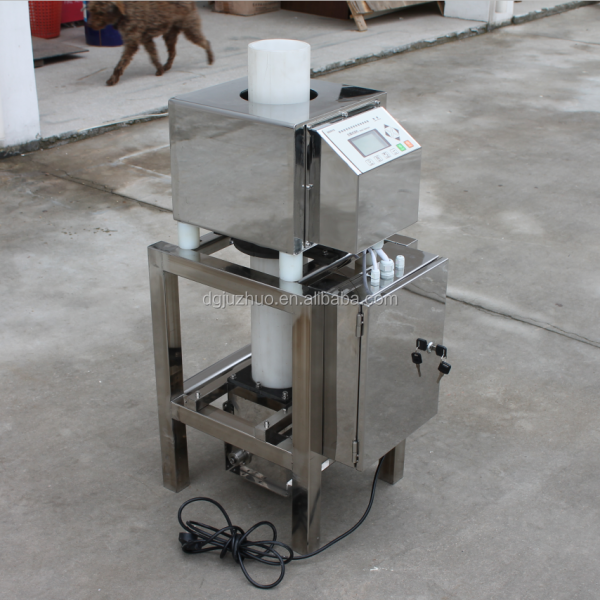

Product Images

Online Industrial Metal Detector High Sensitivity Gravity Fall Type System
