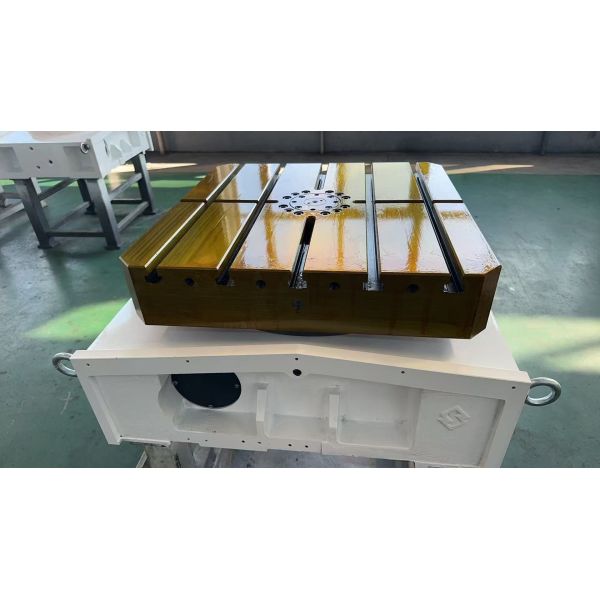

Aluminum Alloy Servo Indexing Rotary Table
Product Overview
The Servo Indexing Rotary Table is a high-performance, precision-engineered solution designed for modern industrial automation and machining applications. This compact table offers exceptional accuracy and reliability, making it ideal for industries where precise positioning and repeatability are critical. With its advanced servo motor drive system, it delivers smooth, responsive motion control for seamless integration into automated production lines.
Key Features
- Servo Controlled Rotary Table for high precision and reliability
- Max Rotational Speed: 16.6 ~ 33.3 RPM for various machining requirements
- Ideal for Precision Machining and Assembly Automation applications
- Constructed from durable Aluminum Alloy for lightweight strength
- High-performance Servo Motor ensuring precise control
- Compact design saves space and integrates easily into existing setups
- Exceptional repeatability and accuracy for demanding applications
Technical Specifications
| Parameter |
Specification |
| Motor Mount Interface |
Standard PCD Ø200 / Ø145 Bolt Circle Options |
| Material |
Aluminum Alloy |
| Table Weight (w/o Motor) |
125 ~ 1000 Kg |
| Max Rotational Speed |
16.6 ~ 33.3 Rpm |
| Minimum Indexing Resolution |
1 ~ 15 Arcsec |
| Clamping Torque |
1750 ~ 5000 N*m |
| Max Load Capacity |
250 ~ 3500 Kg |
| Rotation Angle |
0° To 360° Continuous |
| Clamping Pressure (Hydraulic) |
35 Kg/cm² (standard For All Models) |
| Gear Ratio |
1:120 (standard) / 1:240 (630SF-800 Model) |
Applications
The JuZhuo SY Series Servo Indexing Rotary Table is designed for precision machining environments where accuracy and repeatability are crucial. It seamlessly integrates with CNC machines for complex machining processes and excels in assembly automation by providing precise programmable rotary indexing for multi-station assembly processes. The compact design is ideal for space-constrained manufacturing setups.
Customization & Support
JuZhuo offers customizable solutions tailored to specific needs with a minimum order quantity of 1 set and supply ability of 1000 sets per month. Comprehensive technical support is provided for installation, programming, and maintenance, including regular inspection and lubrication guidance to ensure optimal performance and extended lifespan.
Frequently Asked Questions
What is the brand and model number of the Servo Indexing Rotary Table?
The brand is JuZhuo, and the model number is SY Series.
Where is the Servo Indexing Rotary Table manufactured?
It is manufactured in Dongguan, China.
What certifications does the JuZhuo SY Series have?
The product is certified with ISO9001 and CE.
What is the minimum order quantity and pricing?
The minimum order quantity is 1 set, and the price is negotiable.
How is the product packaged and delivered?
The Servo Indexing Rotary Table is packaged in wooden boxes with delivery time according to customer needs.
