Rotary Table JZ-J160

Clamp screw-hole PCD(mm) : 130/80

Reduction ratio : 80/81

warranty : 3 Years

Machine Type : CNC machine

Brand Name : Juzhuo

model : JZ-J160

machinery test report : Provided

video outgoing-inspection : Provided

Price : $7,000-8,900

weight (kg) : 42

Brand : JUZHUO

Transmission accuracy : 30Sec

Diameter (mm) : 160

Tilt Angle : ±110deg

MOQ : 1

Total height (mm)Horizontal : 227mm

Center hole diameter (mm) : 30mm

Min unit : 0.001deg

Place of Origin : Guangdong, China

Contact Now

5-Axis Rotary Table with Speed Reducer JZ-J160
Product Overview

High-performance 5-axis rotary table with speed reducer designed for precision manufacturing applications.

Model: JZ-J160
Functional Features
  • Large, high-precision cross roller bearing for superior stability
  • Japanese-origin ultra-precision transmission structure
  • Multiple sealing design ensures optimal protection
  • High torque, high precision, and high rigidity performance

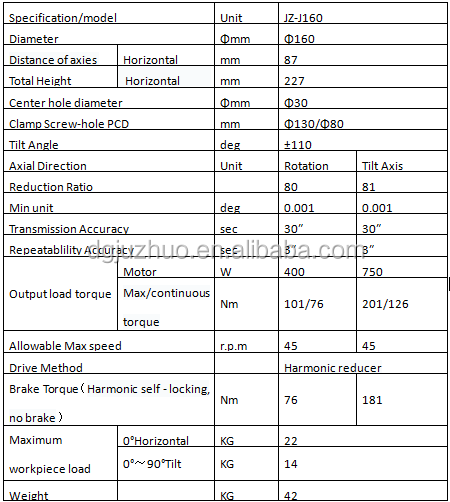

Technical Specifications

Detailed technical parameters and specifications:

Rotary Table JZ-J160 Rotary Table JZ-J160 Rotary Table JZ-J160 Rotary Table JZ-J160

Product Tags:

Precision CNC Rotary Table



Industrial Grade CNC Rotary Table



Cost Effective Indexing Rotary Table


Buy cheap Rotary Table JZ-J160 product

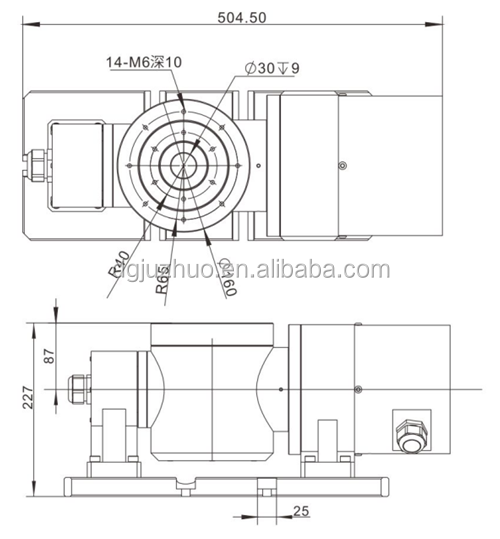

Rotary Table JZ-J160 Images
