Food Processing Industrial Metal Detector Inspection Equipment System JZD-366

Name: Food Processing Industrial Metal Detector Inspection Equipment System JZD366
Brand: JUZHUO
Price: 1 USD

Buy cheap Food Processing Industrial Metal Detector Inspection Equipment System JZD-366 product

Place of Origin : Guangdong, China

conveyor speed : 22m/minutes(variable speed, adjustable)

type : New

customized support : OEM

Model Number : JZD-366

Brand Name : JUZHUO

Raw material : SUS304

warranty : 2

control panel : touch screen

MOQ : 1

alarm : audible and visual alarm ,automatic stop

conveyor load : 25kg(customized)

Contact Now

JZD-366 Food Metal Detector for Food Processing Industry

Product Overview

The JZD-366 is an intelligent LCD display digital metal detector featuring advanced two-way signal detection circuit technology. It utilizes cutting-edge electromagnetic detection and digital signal processing with DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware, combined with advanced detecting algorithms for superior performance.

Applications

Designed for detecting metal impurities in various food products including seafood, frozen food, fish, noodles, bakery items, and other applications requiring metal detection. Suitable for challenging work environments including high/low temperature, humidity, dry conditions, dust, and dew.

Key Features

LCD display control panel with English and Chinese language options
Detects impurities in products packaged with evaporating aluminum
Stores up to 100 different product detection parameters
Automatic identification learning function for efficient product effect compensation
German dual-channel detection technology with rectangular aperture
ADLINE microprocessor controller system
Compliant with IFS standards and certified HACCP, CE & ISO 9001
Strong suppression for product effect in aquatic, frozen & pickled foods
Excellent anti-interference and shock proof capabilities
Easy disassembly and convenient cleaning design

Technical Specifications

Parameter	Specifications
Model	JZD-366
Inspection Window Width	400mm (400mm customization available)
Inspection Height Options	100mm, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm
Detection Sensitivity - Fe (Φmm)	≥0.6, ≥0.8, ≥1.0, ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0
Detection Sensitivity - Non-Fe (Φmm)	≥1.0, ≥1.2, ≥1.5, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Detection Sensitivity - 304SUS (Φmm)	≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Alarm System	Audible and visual alarm with automatic stop
Construction Material	SUS304 Stainless Steel
Machine Dimensions	160cm (L) × 90cm (W) × 100cm (H) - standard size
Net Weight	330kg (standard size)
Power Supply	110V/220V/380V 50Hz/60Hz, 90W
Conveyor Speed	25-30m/min (customizable to customer requirements)
Conveyor Height	650mm ±50mm (standard), customizable to customer needs

Note: Sensitivity specifications are based on testing without bearing any parts. Actual sensitivity may vary depending on product nature and temperature. Automatic rejection equipment can be installed according to customer requirements.

Product Images

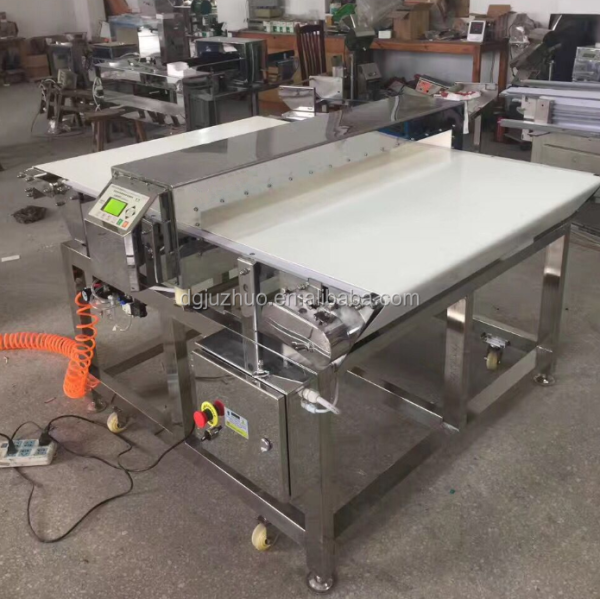

Food Processing Industrial Metal Detector Inspection Equipment System JZD-366
