Online Conveyor Type Confectionery Industry Metal Detector System JZD-600

Model Number : JZD-600

sensitivity : customized

waterproof : IP66

motor : (TRANSTECNO) and Japan Mistubishi

frequency changer : Japan Panasanic

Place of Origin : Guangdong, China

MOQ : 2

certification approval : ISO9001,HACCP,CE

operating frequency : customized

material : Stainless Steel

conveyor speed : 22m/minutes(variable speed,adjustable)

raw material : SUS304 stainless steel

Search Coil Diameter : customized

Price : $5,849.30

type : metal detector

user : all industry

belt color : white ,green

alarm : audible and visual alarm ,automatic stop

conveyor load : 25kg(customized)

control panel : Touch screen dispaly

Contact Now

Online Conveyor Type Metal Detector for Confectionery Industry JZD-600

Product Overview

FDA Standard belt conveyor type metal detector designed specifically for the confectionery industry. Model JZD-600 provides reliable metal contamination detection to ensure product safety and quality.

Applications

This equipment is used for detecting metal foreign bodies in food, medicine, food additives, spices, health products, and other related fields.

Key Features

Constructed entirely from SUS304 stainless steel for anti-corrosion properties and long lifespan
Multi-frequency detection with self-analysis function and high sensitivity
Colorful LCD touch screen for convenient operation
Stores approximately 100 product data profiles, ideal for production lines with variable detection requirements
Dual channel detection: one channel for FE and another for non-ferrous metals
IP66 waterproof protection level, suitable for high-pressure water washing
Stable long-term operation with special design for harsh production environments with strong vibration and high interference
No missed alarms even when tapping the probe
Succinctly detachable framework design for easy cleaning by operators

Technical Specifications

Parameter	Specification
Model	JZD-600
Inspection Window Width	400mm (customized) \| 500mm (customization)
Inspection Height	120mm \| 150mm \| 200mm \| 150mm \| 200mm \| 250mm \| 300mm
Detection Sensitivity - Fe (Φmm)	≥ 0.8 \| ≥ 1.0 \| ≥ 1.2 \| ≥ 1.0 \| ≥ 1.2 \| ≥ 1.5 \| ≥ 2.0
Detection Sensitivity - Non-Fe/SUS (Φmm)	≥ 1.5 \| ≥ 2.0 \| ≥ 2.5 \| ≥ 2.0 \| ≥ 2.5 \| ≥ 3.0 \| ≥ 3.5
Alarm System	Alarm to stop transfer or reject setting
Raw Material	SUS304
Standard Machine Size	1700mm (L) × 910mm (W) × 1000mm (H) (Based on normal size 40×12cm)
Net Weight	330kg (based on normal size)
Power Supply	110V/220V/380V/440V 50Hz/60Hz (Power: 90W)
Conveyor Speed	25-30m/min (customized)
Conveyor Height	650mm ±50mm (customized)

Note: The above sensitivity is judged by the machine without bearing any parts. Actual sensitivity may vary depending on product nature and temperature. Auto-rejection equipment can be installed according to customer requirements.

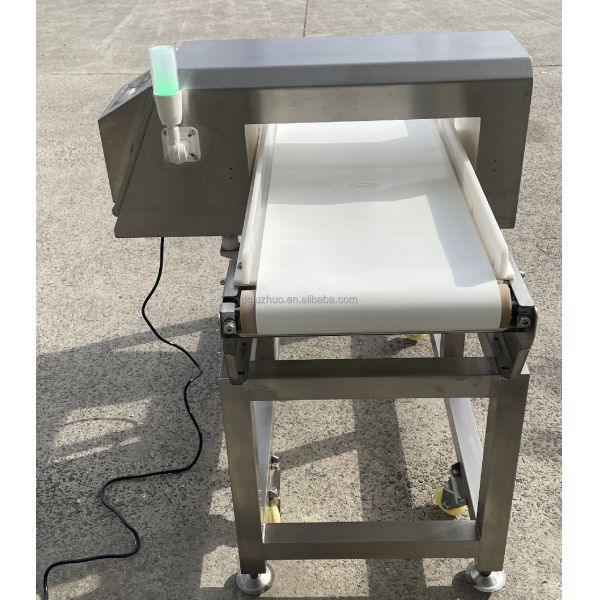

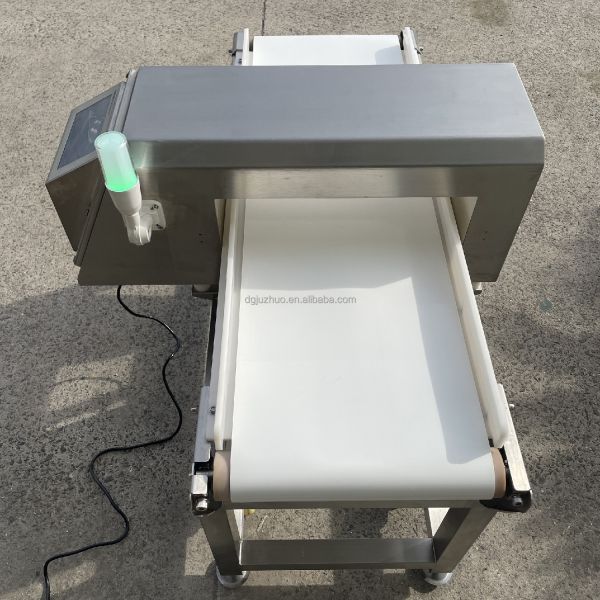

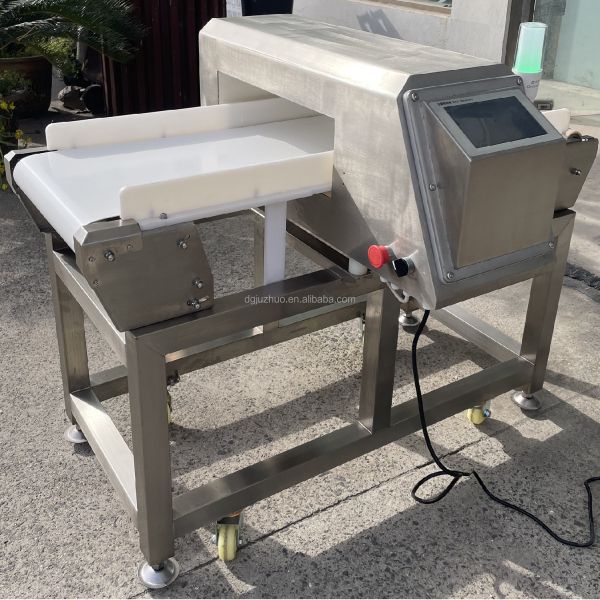

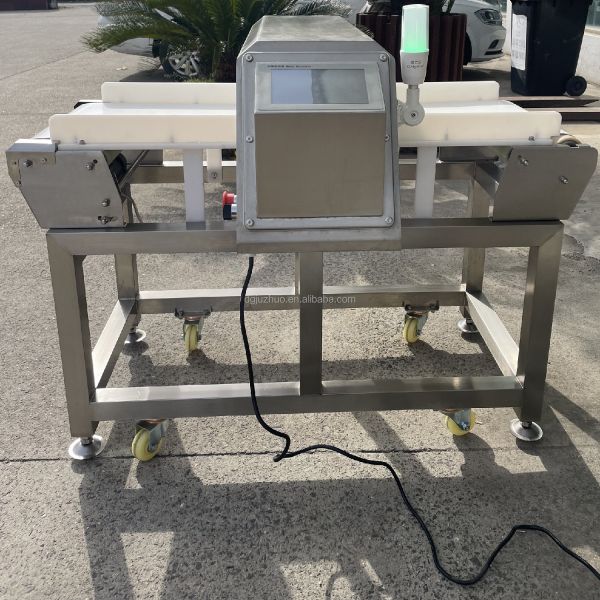

Product Gallery
