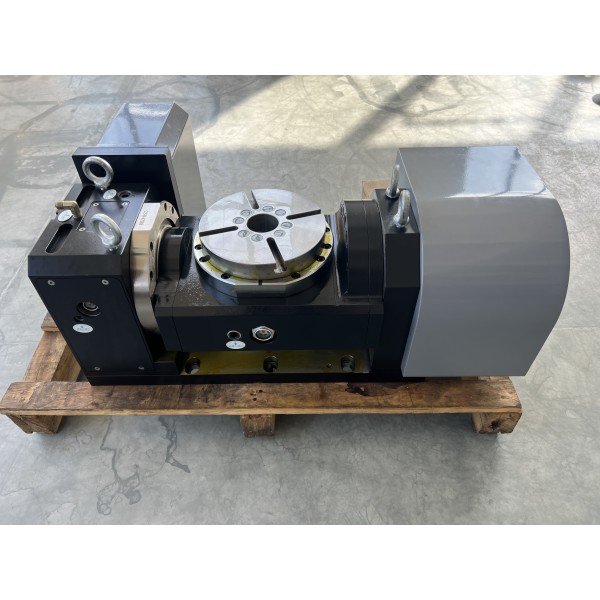

Multi Axis Roller Cam Rotary Table Manufacturer For High Precision Machining

  • 1
  • 2

Axis Type : 5th Axis

Net Weight : 65 ~ 1300 Kg

Price : Negotiable

Lifting Hole : M12 Mm Standard Thread Hole

C-Axis (Rotary Axis) Rotation Range : 360° Continuous Rotation

Compatible Servo Motor : Mitsubishi HF Series / FANUC BiS Series

Supply Ability : 1000set/month

Maximum Rotation Speed : 15 ~ 100 RPM

Model Number : TDNC Series

Locking Method : Pneumatic / Hydraulic

Place Of Origin : Dongguan,China

Certification : ISO9001,CE

Mounting Screw Hole : M6 / M8 / M10 / M16 Mm Countersunk Hole

Brand Name : JuZhuo

MOQ : 1set

Packaging Details : Wooden Box

Name : Roller Cam Rotary Table

Delivery Time : According To Customer Needs

Payment Terms : T/T

Contact Now

12H7 T Slot Size 5th Axis Roller Cam Rotary Table
Product Overview
The 5th Axis Roller Cam Rotary Table is a high-precision, robust solution designed for advanced machining applications requiring exceptional accuracy and reliability. As a critical component in modern CNC machining centers, this product excels in delivering precise rotational positioning and smooth indexing, making it an ideal choice for complex manufacturing processes.
Specifically engineered as a Five Axis CNC Rotary Table, it integrates seamlessly into multi-axis machining setups, providing enhanced flexibility and efficiency in handling intricate workpieces. Compatible with leading servo motor brands including Mitsubishi HF Series and FANUC BiS Series.
Key Features
  • Fifth Axis Machining Table designed for precision and durability
  • Worktable T-Slot Size: 12H7 / 14H7 mm for versatile fixture mounting
  • 360° continuous rotation on the C-Axis (Rotary Axis)
  • Worktable Radial Runout: ≤0.010 mm ensuring high accuracy
  • Worktable Surface Flatness: ≤0.010 mm for superior machining quality
  • Compatible with Mitsubishi HF Series and FANUC BiS Series servo motors
  • Suitable for complex multi-axis machining operations
Technical Specifications
Parameter Specification
Worktable Surface Flatness ≤0.010 mm
A-Axis (Tilt Axis) Tilting Range -30° ~ +120° / -120° ~ +30°
Drive Mechanism Roller Cam
Lifting Hole M12 mm Standard Thread Hole
Application CNC Machining Centers, Milling Machines, Multi-axis Machining
Mounting Screw Hole M6 / M8 / M10 / M16 mm Countersunk Hole
Worktable T-Slot Size 12H7 / 14H7 mm
Maximum Rotation Speed 15 ~ 100 RPM
Hydraulic Brake Torque 1800 ~ 2500 N*m
Multi Axis Roller Cam Rotary Table Manufacturer For High Precision Machining
Applications
The JuZhuo TDNC Series 5 Axis Roller Cam Rotary Table is ideal for demanding manufacturing industries including aerospace component manufacturing, automotive parts production, precision mold making, medical device production, and electronics manufacturing.
Its wide tilting range and precise angular positioning capabilities make it perfectly suited for 5-axis CNC machines where intricate and precise angular cuts are essential.
Customization & Support
Manufactured in Dongguan, China with ISO9001 and CE certifications. Minimum order quantity of 1 set with negotiable pricing. Each unit is securely packaged in wooden boxes with flexible delivery times. Payment terms primarily T/T with supply capability of 1000 sets per month.
Comprehensive technical support includes calibration, repair, and upgrade options. Regular maintenance recommendations and replacement parts availability ensure optimal performance and extended lifespan.
Frequently Asked Questions
What is the brand and model number of the 5th Axis Roller Cam Rotary Table?
The product is branded JuZhuo and the model number is from the TDNC Series.
Where is the 5th Axis Roller Cam Rotary Table manufactured?
It is manufactured in Dongguan, China.
What certifications does the JuZhuo TDNC Series Rotary Table have?
The product is certified with ISO9001 and CE.
What is the minimum order quantity and packaging?
Minimum order quantity is 1 set, packaged in a wooden box.
What are the payment terms and delivery time?
Payment terms are T/T, with delivery time according to customer needs.
